Eastwood Air CFS – Complete Filtration System

DETAILS

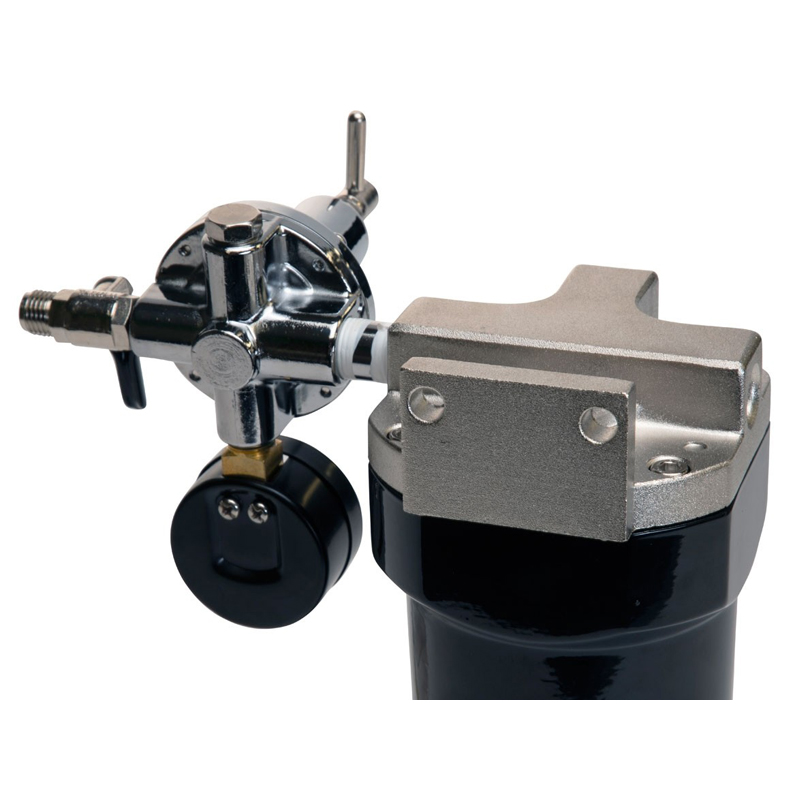

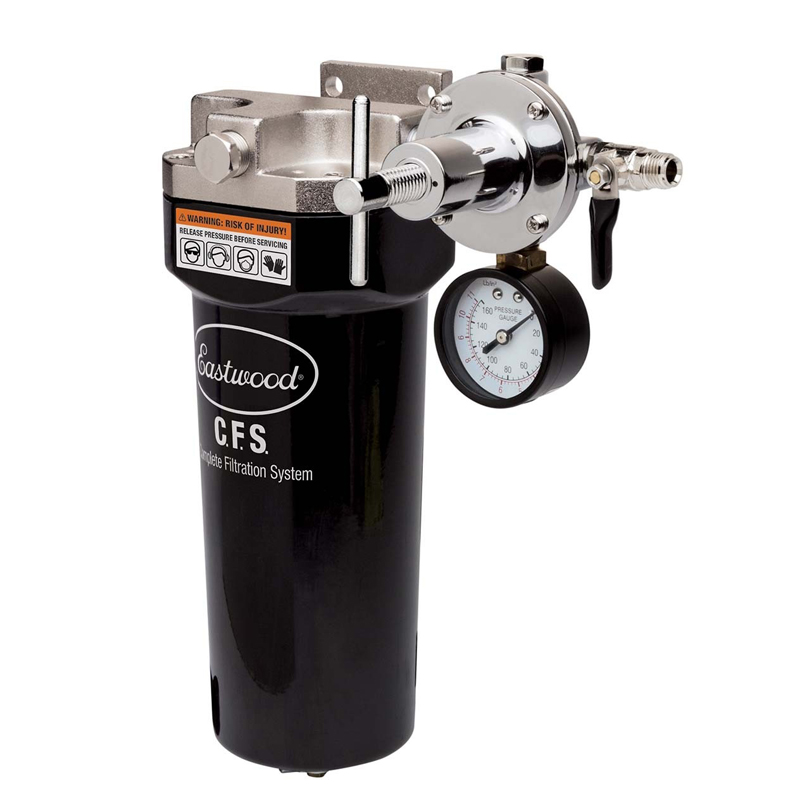

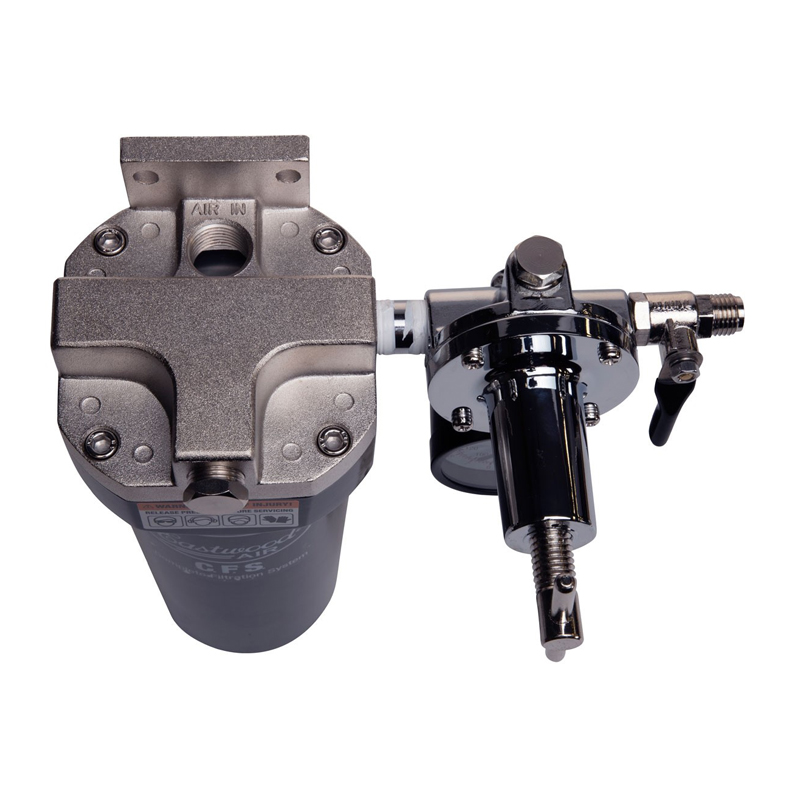

The Eastwood Air C.F.S. (Complete Filtration System) includes a high-capacity canister with a long-life 1-micron coalescing filter, and petcock drain to trap moisture and other impurities from a compressed air supply.

  • Filters particles down to 1-micron
  • Air Pressure Regulator

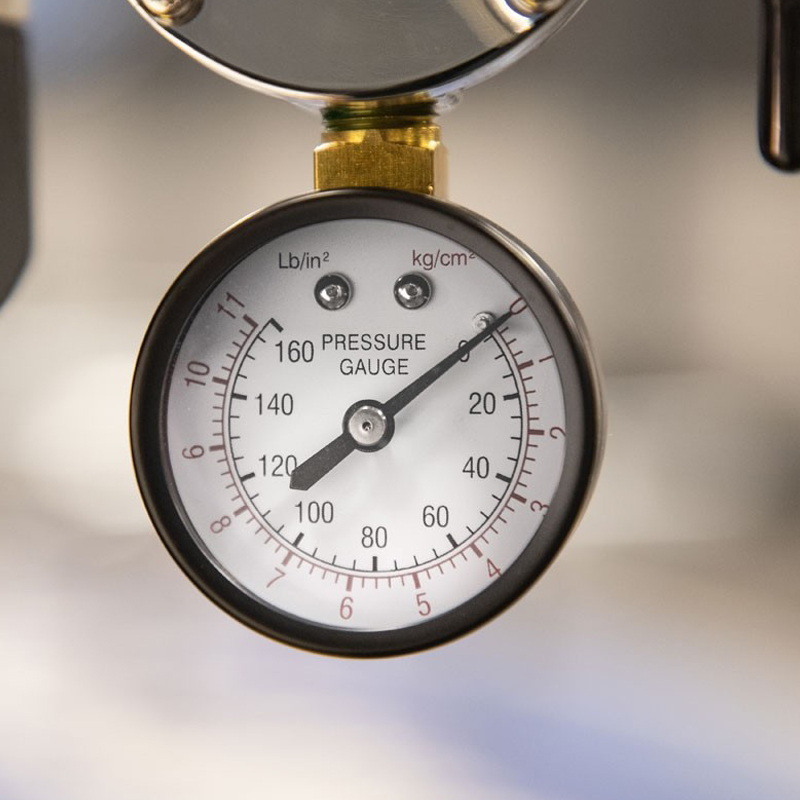

  • 0 to 150 psi air pressure gauge
  • Integral mounting bracket

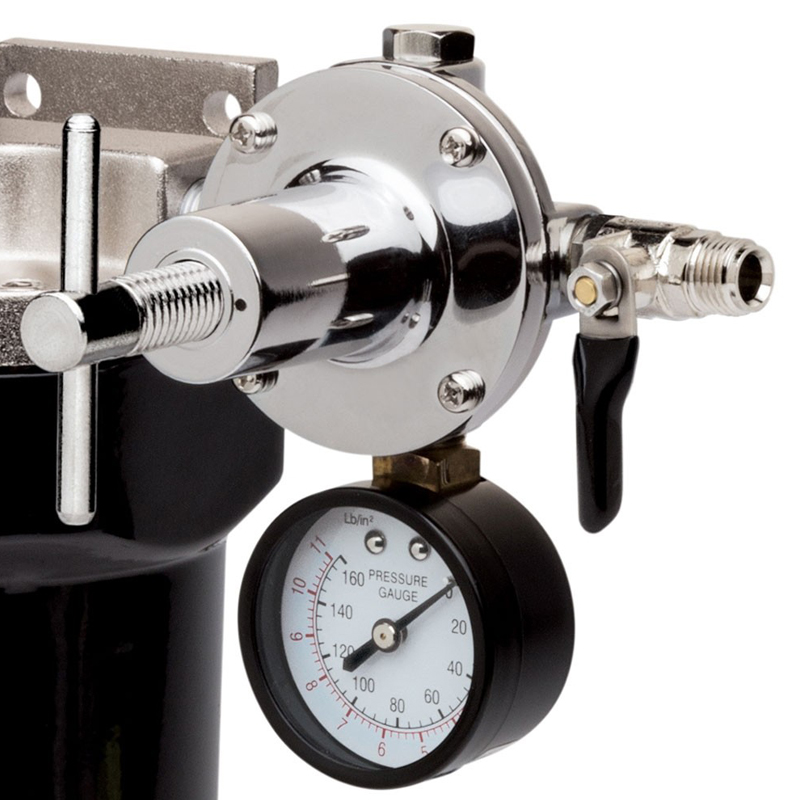

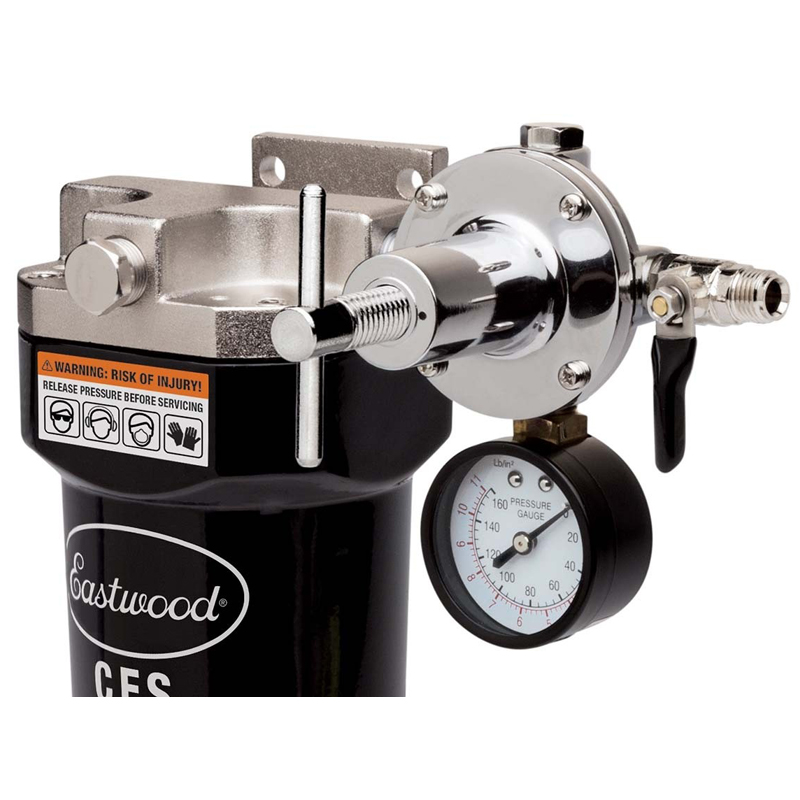

The Regulator features a 0 to 150 PSI Gauge. It also features an integral mounting bracket for secure mounting and can be easily upgraded to air drying capability with the optional Eastwood #51567 or DeVilbiss #130524 Desiccant Kit.

SKU: 31633 ,

Deskripsi

CONTENTS



  • (1) 1/2” FNPT, 1-Micron Coalescing, Filter/Regulator with Drain Valve
  • (1) Regulator
  • (1) Regulator Key
  • (1) Pressure Gauge
  • (1) 5mm Hex Key
  • (1) 8” Adapter Stem (To accept optional Eastwood #51567 or DeVilbiss #130524 Desiccant Kit)



SPECIFICATIONS



1/2” NPT Female Inlet
1/4” NPT Male Outlet
Maximum service pressure 150 PSI (10.3 bar)
Air flow capacity 50 CFM
Maximum service temperature 150°F (65°C)
Filter Size 1 micron







SAFETY



  • Thoroughly read and understand these product instructions before using this equipment. Failure to follow all warnings can result in tool damage or serious physical injury.
  • Keep these product instructions for future reference.
  • This device is specifically designed to be used for compressed air ONLY. Use with any other fluid (liquid or gas) is a misapplication and not permitted. Use with certain hazardous liquids or gasses could be harmful to the unit or result in a combustible condition or hazardous external leakage.
  • Always wear ANSI Z87-approved eye protection when operating this Air Filter/Regulator. Air, moisture and debris can be ejected at high velocity while using this equipment.
  • Air discharged from this Air Filter/Regulator is not intended for, and should never be used as supply air for human consumption.
  • Do not exceed 150 PSI (10.3 bar) of inlet air pressure. Permanent equipment damage and/or bursting could occur and cause personal injury.
  • This Air Filter/Regulator can quickly release moisture and other debris while connected to an air supply causing serious personal injury. Always shut off the air supply to the Air Filter/Regulator and depressurize before draining moisture, changing desiccant or other maintenance.



WARRANTY



1 Year Warranty
